VMP Boost-Lok Supercharger Gasket Seal '07-14 GT500 & '11-17 Coyote

VMP Boost-Lok Supercharger Gasket Seal '07-14 GT500 & '11-17 Coyote

PN: VMP-SUG000
$59.99

Details

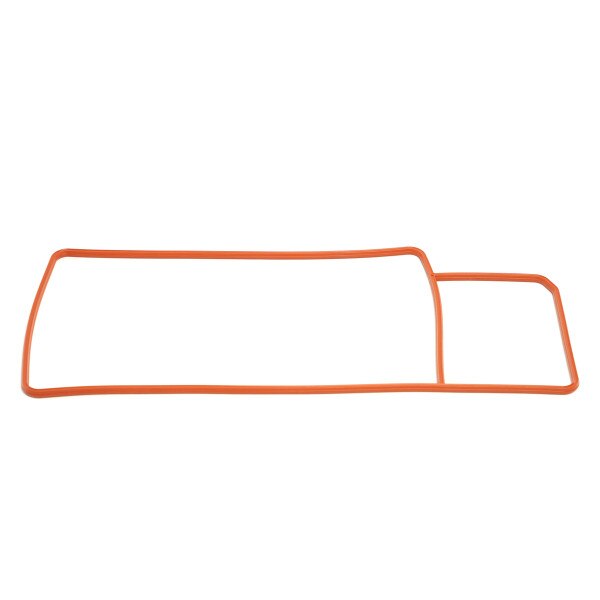

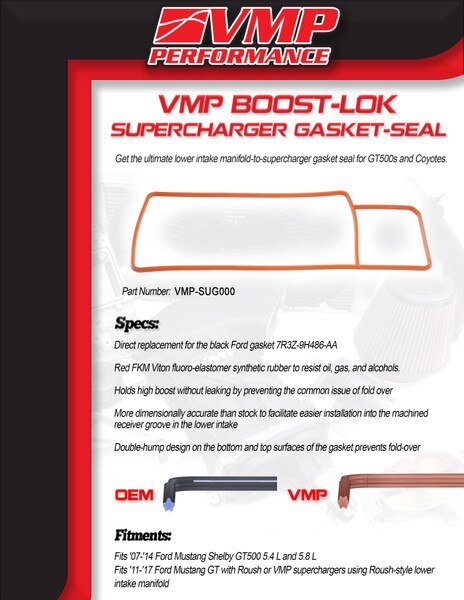

VMP has designed the ultimate lower intake manifold-to-supercharger gasket seal for GT500s and Coyotes.

The VMP Boost-Lok gasket prevents boost loss due to the fold-over issue common in high boost situations with the factory gasket.

  • Direct replacement for the black Ford gasket 7R3Z-9H486-AA

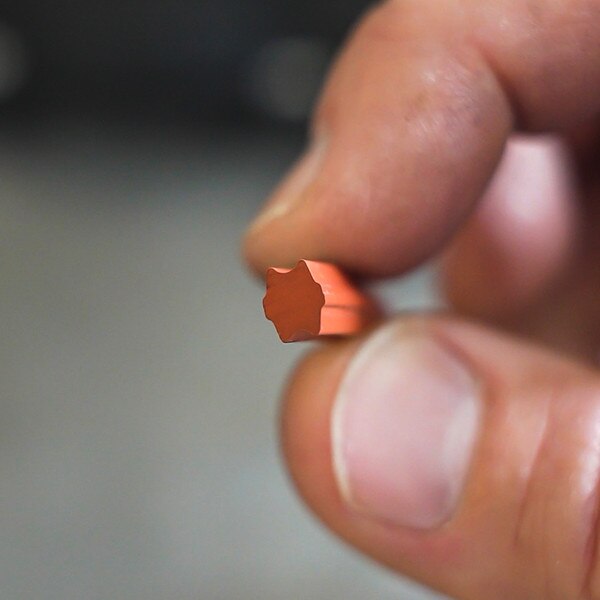

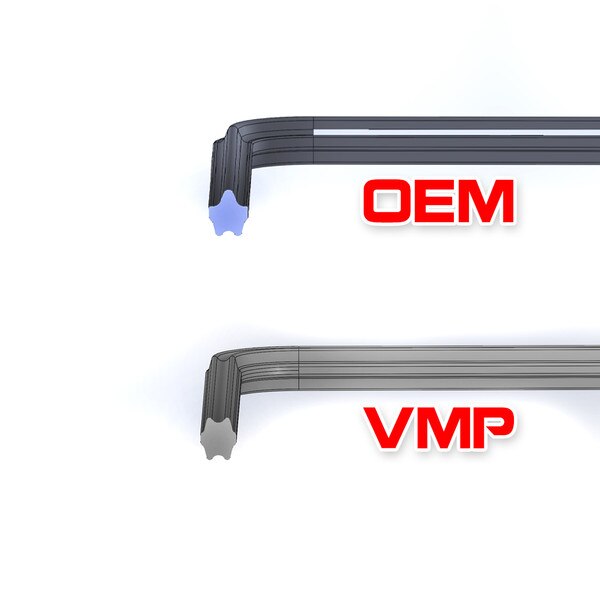

  • Double-hump design on the bottom and top surfaces of the gasket prevents fold-over
  • Holds high boost without leaking
  • More dimensionally accurate than stock to facilitate easier installation into the machined receiver groove in the lower intake
  • Fits '07-'14 Ford Mustang Shelby GT500 5.4 L and 5.8 L
  • Fits '11-'17 Ford Mustang GT 5.0 L with Roush or VMP superchargers using Roush-style lower intake manifold
  • Fits '11-'14 Ford F-150 Raptor 6.2 L with Roush or VMP superchargers
  • Fits '05-10 Ford Mustang GT 4.6 L with Roush R2300 2.3 L supercharger kit (does not fit M90 supercharger)
  • Fits '05-10 Roush special edition Mustangs such as P51A, P51B, 540RH
  • Red FKM Viton fluoro-elastomer synthetic rubber to resist oil, gas, and alcohols.

*This is the most important gasket to replace on the lower intake because it sees the most abuse due to the hot non-intercooler air coming out of the supercharger.
