VMP '07-'14 GT500 & '11-'17 Coyote Street Intercooler upgrade

This intercooler upgrade includes:

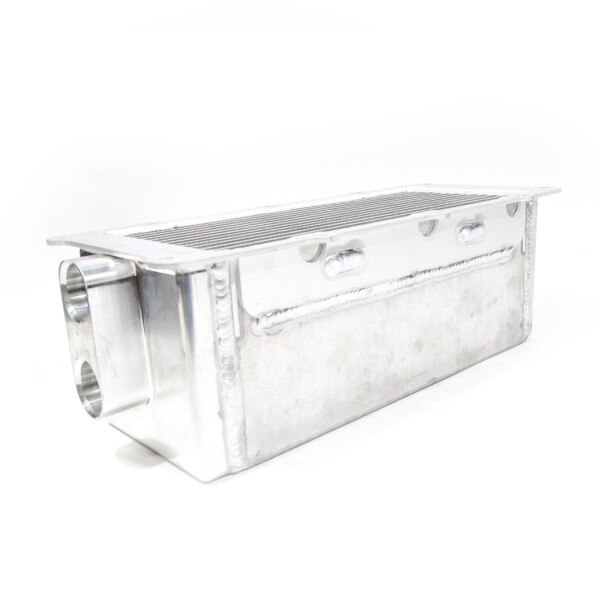

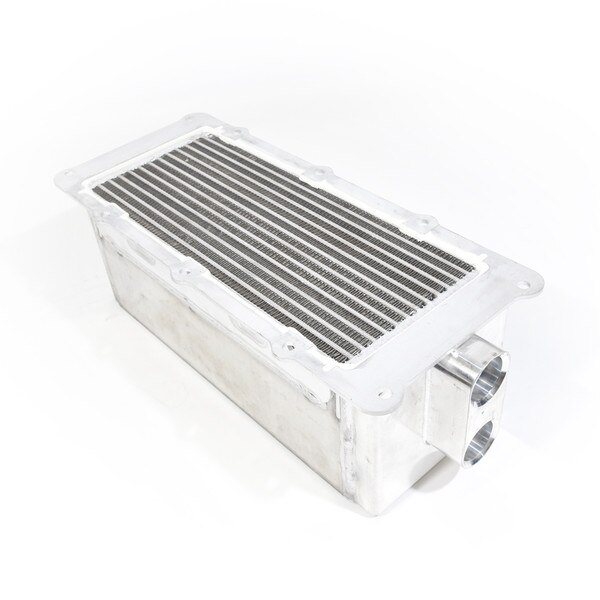

• VMP Intercooler core
• Loctite
• M6 x 20 mm flange head bolts (10)

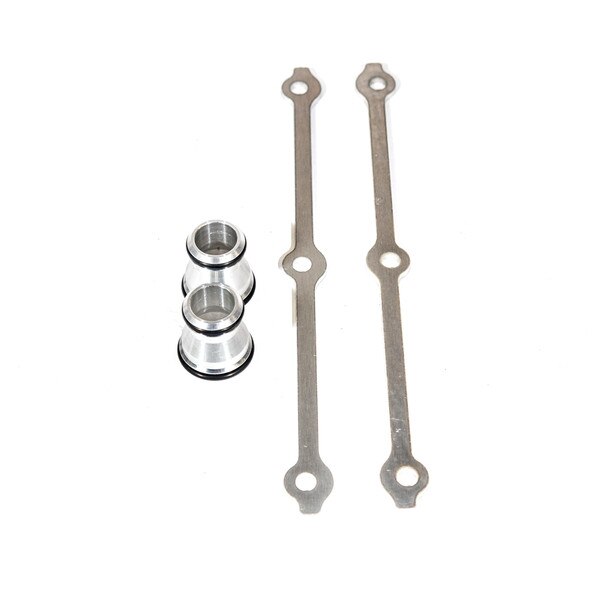

• Support rails (2)
• VMP-SUC030 1" to 3/4" Long floating transfer tubes for GT500 with stock water manifold
• VMP-SUC029 1" to 3/4" short floating tubes for Coyote/Raptor with stock water manifold
• Must purchase 1" short or long floating transfer tubes when using with VMP water manifolds (SUC017 or SUC027)

Specifications:

• 13 cooling rows vs 12 stock
• 1" in/out ports vs 3/4" stock
• 123 mm wide vs 110 mm stock
• 8% increase in airflow
• 12% increase in core volume
• 15% increase in water flow (with supporting mods)
• 16 FPI lanced offset
• LD style core

Applications this intercooler will fit:

• 07-12 Mustang Shelby GT500 5.4 L 4v supercharged
• 13-14 Mustang Shelby GT500 5.8 L 4v supercharged
• 08-10 Roush 4.6 L 3v supercharged (P51A, P51B, Roush Hammer 540RH, and 4.6 L 3v cars with the Roush R2300 kit )
• 11-17 Mustang GT/Roush/F-150 5.0 L 4v supercharged
• 11-14 Raptor 6.2 L with Roush supercharger Phase 1 (421246) or Phase 2 (421432)

Upgrade / Replacement for the following Part Numbers:

• M-6775-MSVT
• R07060144-13-AA
• 7R3Z-6K775-AA (07-12)
• DR3Z-6K775-A (13-14)

Dimensions:

• 286 mm core length
• 118 mm core depth
• 123 mm core height
• 28.58 mm water in/out

***This intercooler will only fit the above OEM intakes from Ford/Roush. The will NOT fit an aftermarket lower intake.

***If you have the J2 Flow Mod on your 2007-2014 GT500, then you will need 2 of the VMP-SUC043.

This intercooler is 50 State Legal. E.O. D-846-1
