• Easy direct fit installation, no modifications needed
• Includes fuel feed and crossover provision for 11-17 Coyote 5.0 L, F-150 and Mustang
• Constructed of high-quality billet aluminum
• Direct replacement for Coyote 5.0 L, Roadrunner (BOSS 302) 5.0 L with stock intake or positive displacement blower like VMP or Roush
• Assembly Instructions

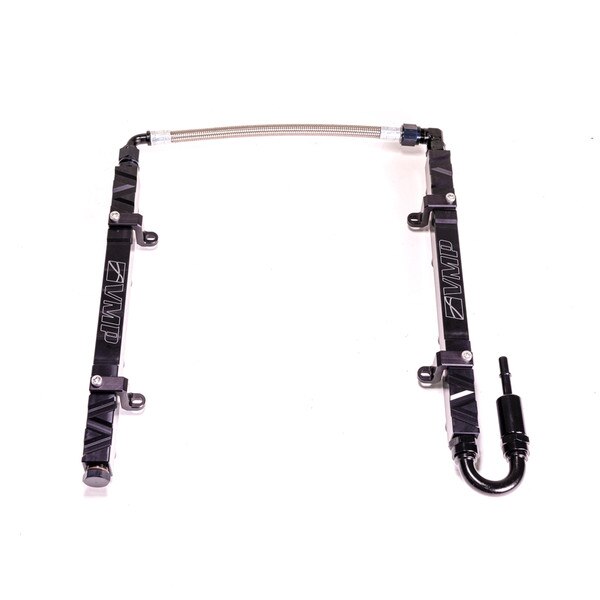

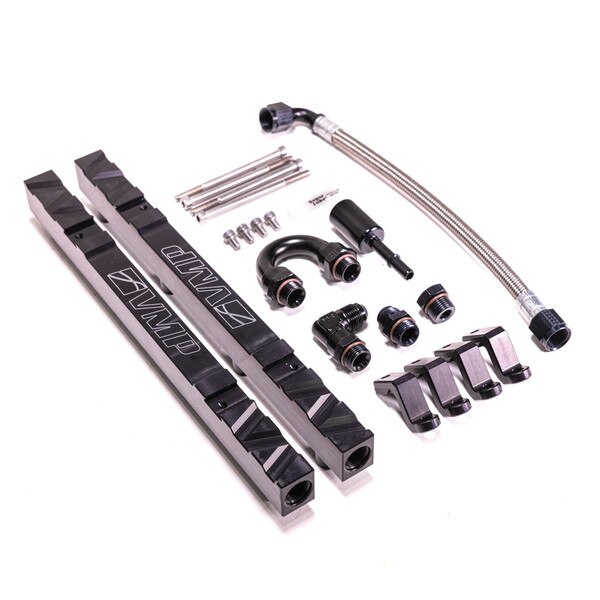

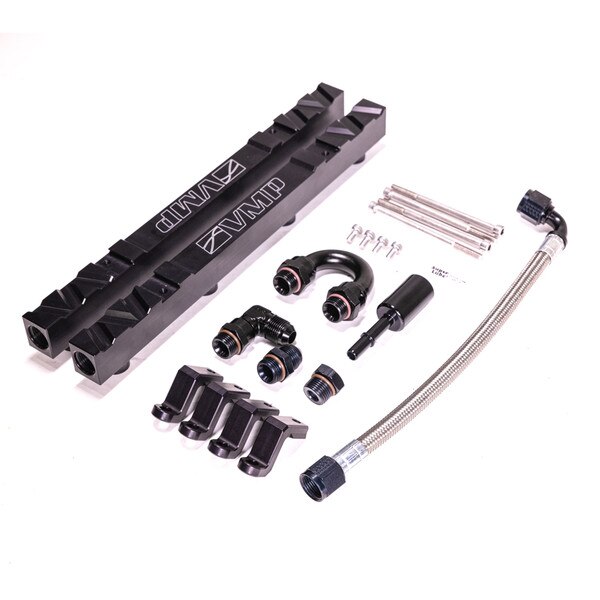

High-performance vehicles demand more fuel flow delivery to the engine. To meet those needs, VMP designed a fuel rail kit that's constructed to flow more fuel at a consistent output, allowing greater power delivery and improved throttle response.

Constructed of high-quality billet aluminum, the VMP fuel rail kit is lightweight, strong and durable. Anodized, for corrosion resistance, these fuel rails are designed to last.

VMP fuel rails are designed to work with the taller stock Coyote height 60 mm injectors. When using 95 lb or 1000 cc injectors one height adapter is needed, ID1050 and larger will require top and bottom height adapters.

Notes:

• Always lube injector bosses and o-ring fittings before installation.
• If you're using shorter injectors (48mm), then you will need height adapters (VMP-ENF009)
