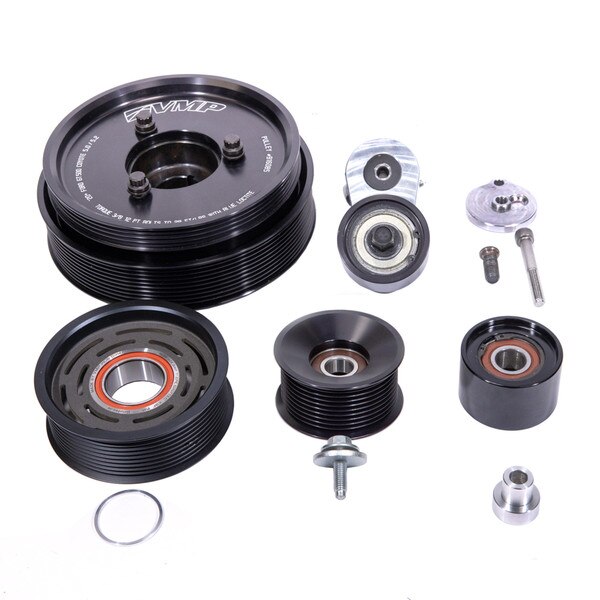

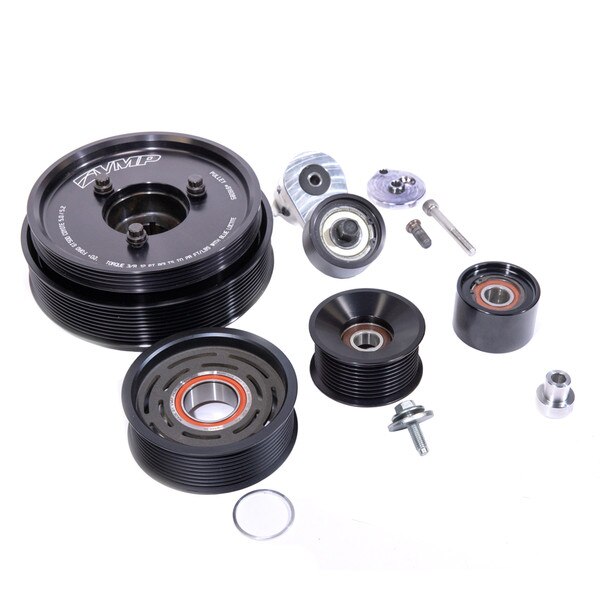

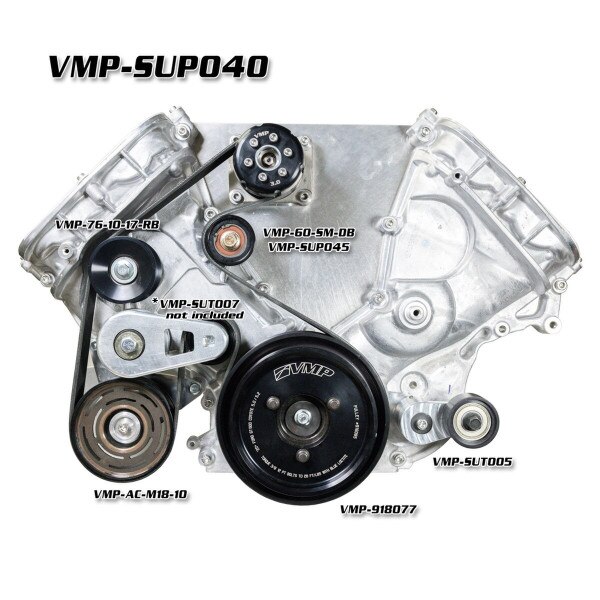

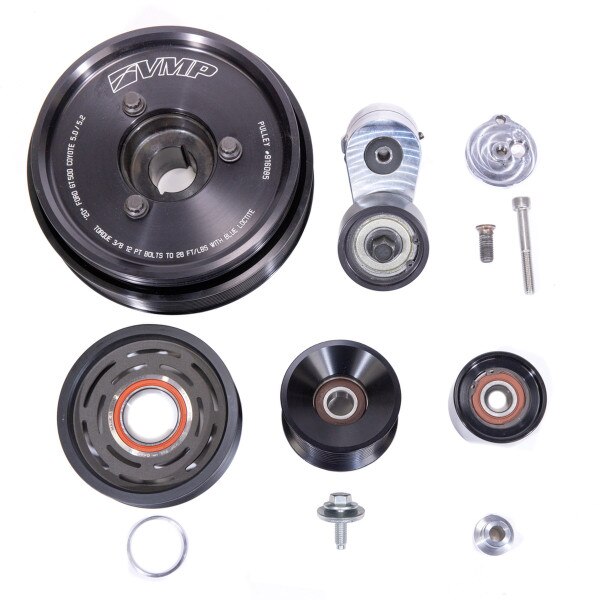

VMP 10-Rib Upgrade kit for '20+ Predator 5.2 L with AC - 10% OD
Upgrade kits do not include some of the universal components that may already be present, such as upgraded belt tensioners or wrap brackets.
This version of the VMP 10-rib kit is for '20+ Predator 5.2 L engines with the factory AC compressor.
Supercharger pulleys sold separately. VMP-HUB-M18 and VMP-ODP002 required for stock Predator & Raptor R superchargers.
VMP Apex Predator superchargers and stock superchargers with the VMP M18 Hub must use a VMP-ODP002 .940" hub spacer and longer 35 mm bolts. If you are having your own pulleys made the belt alignment is +1 backward and +1 forward.
Designed to work with Predator style front covers, does not fit the regular GT cover. See VMP Odin 10-rib kits for options for GT style front covers.
For Whipple applications does not use standard Whipple 10-rib pulleys, must be custom made 1 rib back with rear lip machined off to clear the inlet.
The kit uses VMP 10-rib pulleys. Note: pulleys smaller than 2.7" or 2.9" in Griptec require machining of the front edge of the supercharger cartridge to clear.
| VMP-36-10-B | VMP 3.6" 10-Rib Pulley for 5.0 L/5.2 L/5.4 L/5.8 L TVS Supercharger |
| VMP-34-10-B | VMP 3.4" 10-Rib Pulley for 5.0 L/5.2 L/5.4 L/5.8 L TVS Supercharger |
| VMP-33-10-B | VMP 3.3" 10-Rib Pulley for 5.0 L/5.2 L/5.4 L/5.8 L TVS Supercharger |
| VMP-32-10-B | VMP 3.2" 10-Rib Pulley for 5.0 L/5.2 L/5.4 L/5.8 L TVS Supercharger |
| VMP-31-10-B | VMP 3.1" 10-Rib Pulley for 5.0 L/5.2 L/5.4 L/5.8 L TVS Supercharger |
| VMP-30-10-B | VMP 3.0" 10-Rib Pulley for 5.0 L/5.2 L/5.4 L/5.8 L TVS Supercharger |
| VMP-29-10-B | VMP 2.9" 10-Rib Pulley for 5.0 L/5.2 L/5.4 L/5.8 L TVS Supercharger |
| VMP-28-10-B | VMP 2.8" 10-Rib Pulley for 5.0 L/5.2 L/5.4 L/5.8 L TVS Supercharger |
| VMP-27-10-B | VMP 2.7" 10-Ribe Pulley for 5.0 L/5.2 L/5.4 L/5.8 L TVS Supercharger |
| VMP-26-10-B | VMP 2.6" 10-Rib Pulley for 5.0 L/5.2 L/5.4 L/5.8 L TVS Supercharger |
| VMP-25-10-B | VMP 2.5" 10-Rib Pulley for 5.0 L/5.2 L/5.4 L/5.8 L TVS Supercharger |
| VMP-24-10-B | VMP 2.4" 10-Rib Pulley for 5.0 L/5.2 L/5.4 L/5.8 L TVS Supercharger |
| Griptec pulleys: | |
| VMP-29-10-B-GR | VMP 2.9" Griptec 10-rib Pulley for 5.0 L/5.2 L/5.4 L/5.8 L TVS Supercharger |
| VMP-28-10-B-GR | VMP 2.8" Griptec 10-rib Pulley for 5.0 L/5.2 L/5.4 L/5.8 L TVS Supercharger |
| VMP-27-10-B-GR | VMP 2.7" Griptec 10-rib Pulley for 5.0 L/5.2 L/5.4 L/5.8 L TVS Supercharger |
| VMP-26-10-B-GR | VMP 2.6" Griptec 10-Rib Pulley for 5.0 L/5.2 L/5.4 L/5.8 L TVS Supercharger |
| VMP-25-10-B-GR | VMP 2.5" Griptec 10-Rib Pulley for 5.0 L/5.2 L/5.4 L/5.8 L TVS Supercharger |
| VMP-24-10-B-GR | VMP 2.4" Griptec 10-Rib Pulley for 5.0 L/5.2 L/5.4 L/5.8 L TVS Supercharger |
