VMP 10-Rib Full-FEAD Kit for '20+ Predator 5.2 L with AC - 20% OD
Financing available with Affirm.
Details

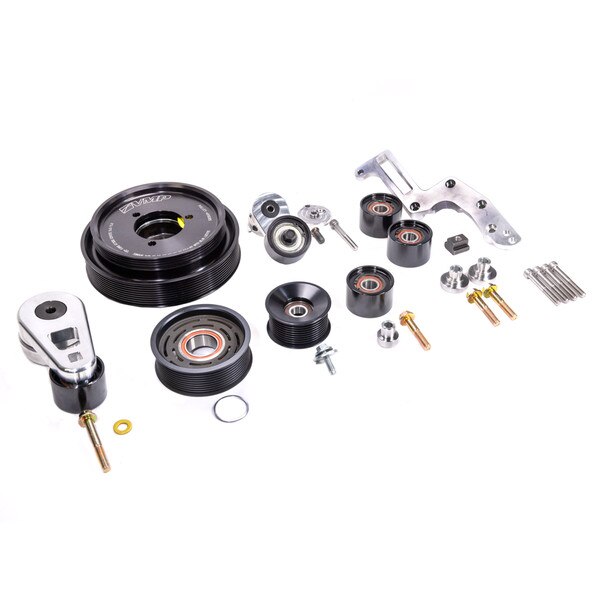

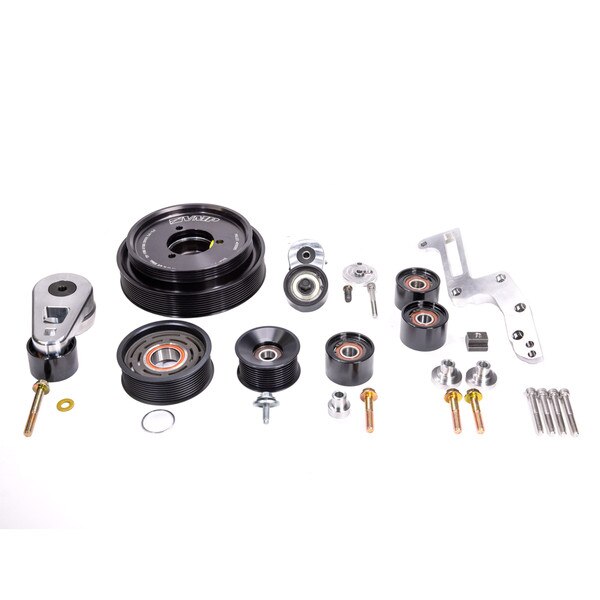

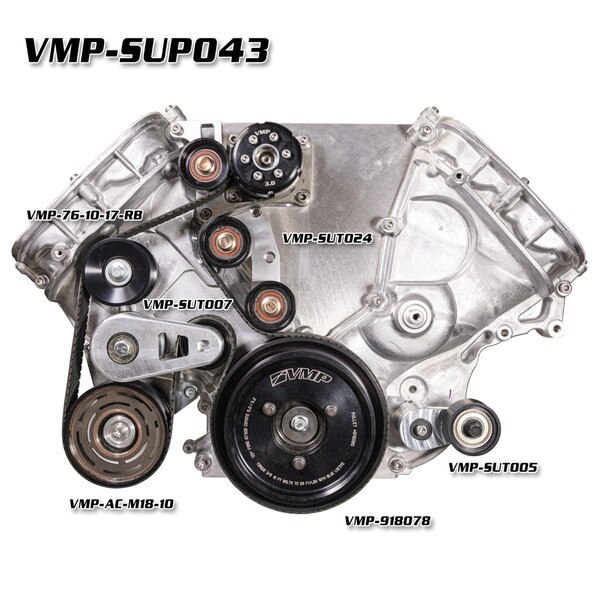

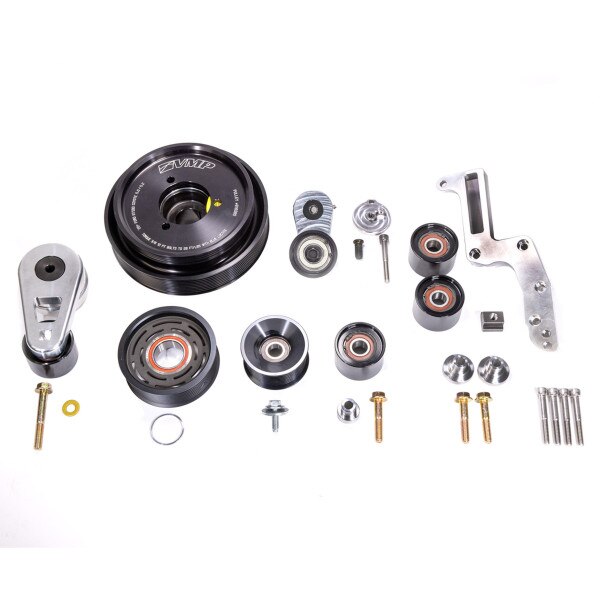

VMP 10-Rib Full-FEAD Kit for '20+ Predator 5.2 L with AC - 20% OD
Full-FEAD Kits include the new VMP Predator Claw Belt-Wrap Bracket designed for Eaton TVS style superchargers.
This version of the VMP 10-rib kit is for '20+ Predator 5.2 L engines with the factory AC compressor. The included Predator Claw bracket improves belt wrap on the TVS style supercharger pulley AND improves belt wrap on the crankshaft pulley. The Predator Claw bracket also fits Whipple 3.0 L & 3.8 L superchargers.
Includes VMP-SUT007 VMP Billet Heavy-Duty Supercharger Belt Tensioner for '07-'14 and '20+ Shelby GT500
Supercharger pulleys sold separately. VMP-HUB-M18 and VMP-ODP002 required for stock Predator & Raptor R superchargers.
VMP Apex Predator superchargers and stock superchargers with the VMP M18 Hub must use a VMP-ODP002 .940" hub spacer and longer 35 mm bolts. If you are having your own pulleys made the belt alignment is +1 backward and +1 forward.
Designed to work with Predator style front covers, does not fit the regular GT cover. See VMP Odin 10-rib kits for options for GT style front covers.
For Whipple applications does not use standard Whipple 10-rib pulleys, must be custom made 1 rib back with rear lip machined off to clear the inlet.
The kit uses VMP 10-rib pulleys. Note: pulleys smaller than 2.7" or 2.9" in Griptec require machining of the front edge of the supercharger cartridge to clear.
| VMP-36-10-B | VMP 3.6" 10-Rib Pulley for 5.0 L/5.2 L/5.4 L/5.8 L TVS Supercharger |
| VMP-34-10-B | VMP 3.4" 10-Rib Pulley for 5.0 L/5.2 L/5.4 L/5.8 L TVS Supercharger |
| VMP-33-10-B | VMP 3.3" 10-Rib Pulley for 5.0 L/5.2 L/5.4 L/5.8 L TVS Supercharger |
| VMP-32-10-B | VMP 3.2" 10-Rib Pulley for 5.0 L/5.2 L/5.4 L/5.8 L TVS Supercharger |
| VMP-31-10-B | VMP 3.1" 10-Rib Pulley for 5.0 L/5.2 L/5.4 L/5.8 L TVS Supercharger |
| VMP-30-10-B | VMP 3.0" 10-Rib Pulley for 5.0 L/5.2 L/5.4 L/5.8 L TVS Supercharger |
| VMP-29-10-B | VMP 2.9" 10-Rib Pulley for 5.0 L/5.2 L/5.4 L/5.8 L TVS Supercharger |
| VMP-28-10-B | VMP 2.8" 10-Rib Pulley for 5.0 L/5.2 L/5.4 L/5.8 L TVS Supercharger |
| VMP-27-10-B | VMP 2.7" 10-Rib Pulley for 5.0 L/5.2 L/5.4 L/5.8 L TVS Supercharger |
| VMP-26-10-B | VMP 2.6" 10-Rib Pulley for 5.0 L/5.2 L/5.4 L/5.8 L TVS Supercharger |
| VMP-25-10-B | VMP 2.5" 10-Rib Pulley for 5.0 L/5.2 L/5.4 L/5.8 L TVS Supercharger |
| VMP-24-10-B | VMP 2.4" 10-Rib Pulley for 5.0 L/5.2 L/5.4 L/5.8 L TVS Supercharger |
| Griptec pulleys: | |
| VMP-29-10-B-GR | VMP 2.9" Griptec 10-rib Pulley for 5.0 L/5.2 L/5.4 L/5.8 L TVS Supercharger |
| VMP-28-10-B-GR | VMP 2.8" Griptec 10-rib Pulley for 5.0 L/5.2 L/5.4 L/5.8 L TVS Supercharger |
| VMP-27-10-B-GR | VMP 2.7" Griptec 10-rib Pulley for 5.0 L/5.2 L/5.4 L/5.8 L TVS Supercharger |
| VMP-26-10-B-GR | VMP 2.6" Griptec 10-Rib Pulley for 5.0 L/5.2 L/5.4 L/5.8 L TVS Supercharger |
| VMP-25-10-B-GR | VMP 2.5" Griptec 10-Rib Pulley for 5.0 L/5.2 L/5.4 L/5.8 L TVS Supercharger |
| VMP-24-10-B-GR | VMP 2.4" Griptec 10-Rib Pulley for 5.0 L/5.2 L/5.4 L/5.8 L TVS Supercharger |
