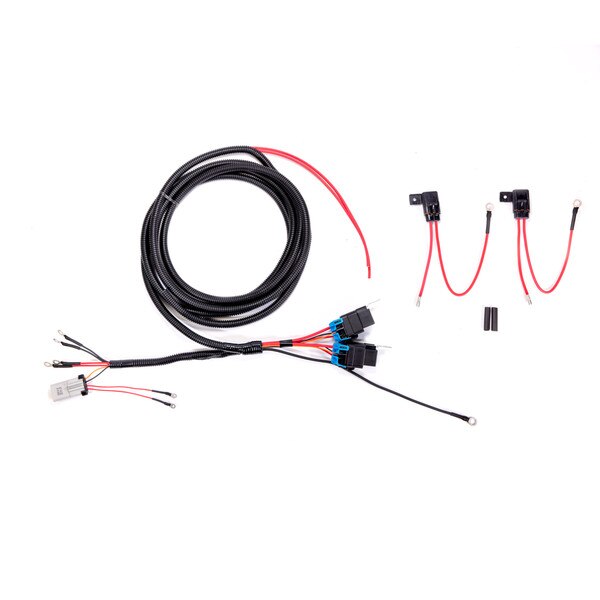

VMP PnP Fuel System Dual-Relay Wiring Harness for '11+ Mustang GT 5.0 L only
Financing available with Affirm.
VMP PnP Fuel System Dual-Relay Wiring Harness for '11+ Mustang GT 5.0 L only
See VMP-ENF-014 for ‘13-14 Shelby GT500 and ’16-20 GT350 fitment
Included standard with VMP Plug and Play Fuel Systems.
Compatible with other fuel systems that use dual pumps in the factory location.

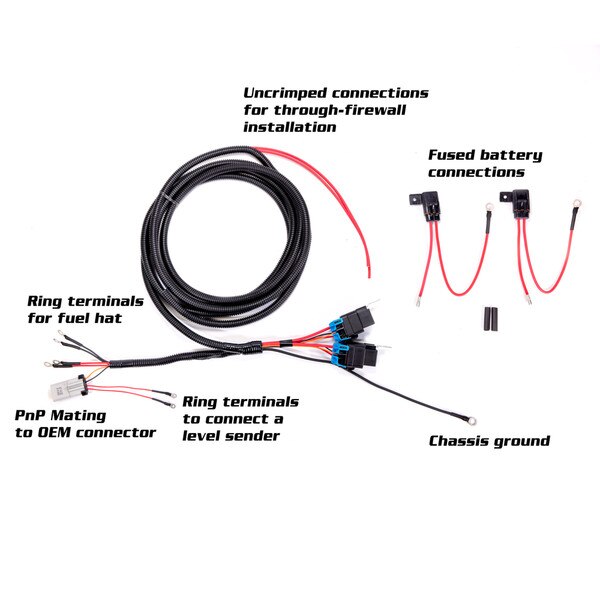

- Dual 30 amp sealed relays (continuous duty)
- Dual 40 amp fuse holders (for inrush current)
- Dual 10 gauge feeds from battery (30 amp x 2)

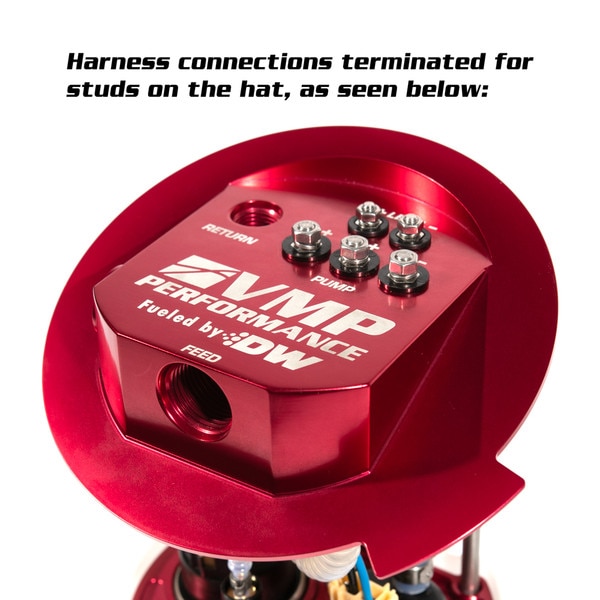

- Dual feed wires for pump hat with eyelets

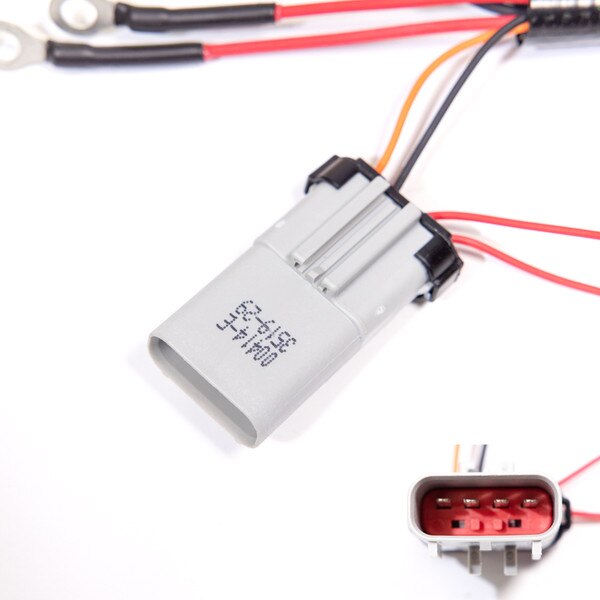

- Triggers off factory FPDM signal with included mating connector
- Maintains factory safety fuel shutoff in the event of a crash or airbag deployment
- Special tuning is not required due to use of factory FPDM signal as trigger
Installation of this harness can be seen in our VMP Plug and Play return style fuel system installation video from roughly the 26 minute mark. It will vary slightly depending on the manufacturer of your fuel hat. The video is shared below:
