VMP 10-Rib Upgrade Kit for '11-17 Odin Supercharged Coyote with AC - 20% OD

SKU: VMP-SUP033
$1,999.99

FOR CLOSED COURSE COMPETITION USE ONLY. NOT INTENDED FOR STREET USE. THE SALE, USE, OR INSTALLATION OF THIS PRODUCT MAY ALSO BE ILLEGAL NATIONWIDE UNDER THE FEDERAL CLEAN AIR ACT (42 U.S.C. § 7522(A)(3)).

Odin 10-Rib "Upgrade Kit" with AC 20% OD balancer for 11-17 Coyote 5.0 L (Mustang & F-150)



Upgrade kits are for customers that already have the VMP no-grind style FEAD system that came with there Odin or Loki supercharger kit. This kit provides additionally pulleys and an upgraded tensioner to accommodate 10-rib style belts along with a new SFI approved ATI balancer designed specifically for VMP.

Afraid of belt slip? Convert your 6-Rib Odin/Loki kit to an 10-Rib belt drive system! With more ribs on your drive system, there is more surface area to help make belt slip a thing of the past. Not only are you adding more ribs, but this kit will also come with the VMP Heavy Duty Tensioner for more belt tension as well.

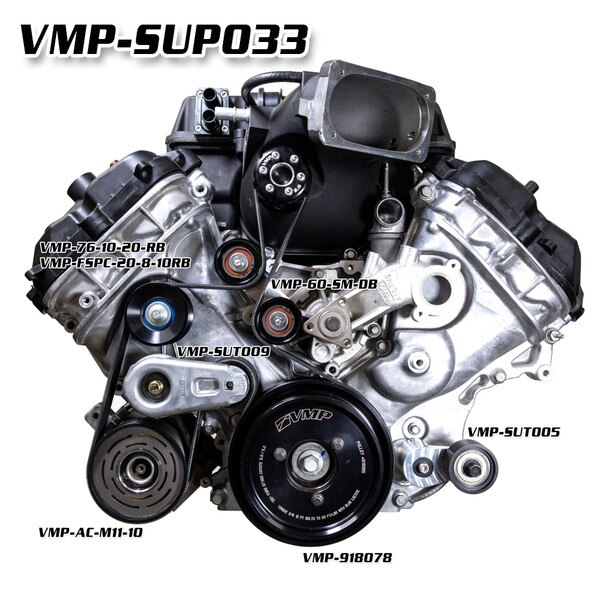

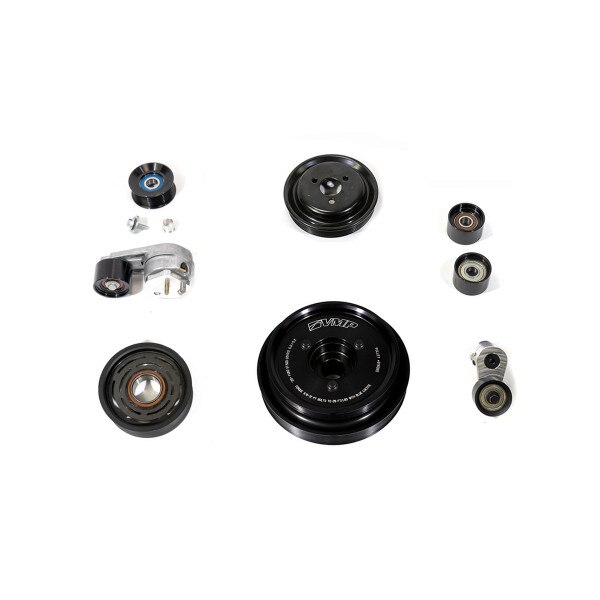

Includes:

  • Odin/G3R HD Tensioner VMP-SUT009

  • Super Low Profile Accessory Belt Tensioner VMP-SUT005

  • ATI/VMP 10% OD balancer (new version VMP-918075)

  • 8-rib AC Clutch Pulley KR3Z-19V649-A

  • 3-bolt Water Pump Pulley with back lip removed VMP-SUP076

  • Ribbed idler and spacer for front cover VMP-76-8-20-RB & VMP-FSPC-20-8-10RB

  • VMP 60 mm double row idler pulley VMP-60-SM-DB
  • 4-rib accessory belt
  • Pulley bolts VMP-SUA017
  • All necessary hardware


**This kit does NOT include an 8-Rib Supercharger Pulley.

VMP now makes 8-rib superchargers pulleys specific to the Odin/Predator platform, they do not use a hub spacer like the 6-rib pulley. These pulleys have a -F at the end for "front-feed" style supercharger.

Currently available sizes / Boost psi with 10% lower

Griptec:
VMP-24-8-F-GR / 24 psi
VMP-25-8-F-GR / 23 psi
VMP-26-8-F-GR / 22 psi
VMP-27-8-F-GR / 21 psi

Standard:
VMP-26-8-F / 21-22 psi
VMP-27-8-F / 20-21 psi
VMP-28-8-F / 19-20 psi
VMP-30-8-F / 17-18 psi
VMP-32-8-F / 15-16 psi
VMP-34-8-F / 13-14 psi
VMP-36-8-F / 11-12 psi

*Stage 3 ported blowers will make 2psi over standard Stage 2.  Stage 3 porting is required to make over 24psi.

*The balancer converts to a 4-rib accessory belt (included, for replacements use stock 2020 GT500 Ford KR3Z-8620-B / JK4682 / Bando 4PK1715).  Install belt on front 4-ribs of water pump and alternator pulley.

*Supercharger belt not included

*All parts may be purchased individually using the above PNs

Available VMP 10-rib pulleys:

VMP-36-10-BVMP 3.6" 10-Rib Pulley for 5.0 L/5.2 L/5.4 L/5.8 L TVS Supercharger
VMP-34-10-BVMP 3.4" 10-Rib Pulley for 5.0 L/5.2 L/5.4 L/5.8 L TVS Supercharger
VMP-33-10-BVMP 3.3" 10-Rib Pulley for 5.0 L/5.2 L/5.4 L/5.8 L TVS Supercharger
VMP-32-10-BVMP 3.2" 10-Rib Pulley for 5.0 L/5.2 L/5.4 L/5.8 L TVS Supercharger
VMP-31-10-BVMP 3.1" 10-Rib Pulley for 5.0 L/5.2 L/5.4 L/5.8 L TVS Supercharger
VMP-30-10-BVMP 3.0" 10-Rib Pulley for 5.0 L/5.2 L/5.4 L/5.8 L TVS Supercharger
VMP-29-10-BVMP 2.9" 10-Rib Pulley for 5.0 L/5.2 L/5.4 L/5.8 L TVS Supercharger
VMP-28-10-BVMP 2.8" 10-Rib Pulley for 5.0 L/5.2 L/5.4 L/5.8 L TVS Supercharger
VMP-27-10-BVMP 2.7" 10-Rib Pulley for 5.0 L/5.2 L/5.4 L/5.8 L TVS Supercharger
VMP-26-10-BVMP 2.6" 10-Rib Pulley for 5.0 L/5.2 L/5.4 L/5.8 L TVS Supercharger
VMP-25-10-BVMP 2.5" 10-Rib Pulley for 5.0 L/5.2 L/5.4 L/5.8 L TVS Supercharger
VMP-24-10-BVMP 2.4" 10-Rib Pulley for 5.0 L/5.2 L/5.4 L/5.8 L TVS Supercharger
 Griptec pulleys:
VMP-29-10-B-GRVMP 2.9" Griptec 10-rib Pulley for 5.0 L/5.2 L/5.4 L/5.8 L TVS Supercharger
VMP-28-10-B-GRVMP 2.8" Griptec 10-rib Pulley for 5.0 L/5.2 L/5.4 L/5.8 L TVS Supercharger
VMP-27-10-B-GRVMP 2.7" Griptec 10-rib Pulley for 5.0 L/5.2 L/5.4 L/5.8 L TVS Supercharger
VMP-26-10-B-GRVMP 2.6" Griptec 10-Rib Pulley for 5.0 L/5.2 L/5.4 L/5.8 L TVS Supercharger
VMP-25-10-B-GRVMP 2.5" Griptec 10-Rib Pulley for 5.0 L/5.2 L/5.4 L/5.8 L TVS Supercharger
VMP-24-10-B-GRVMP 2.4" Griptec 10-Rib Pulley for 5.0 L/5.2 L/5.4 L/5.8 L TVS Supercharger
