Ford Style 3-bar MAP sensor (4-wire) for Boost and IAT - Gen2+ 5.0 L

Ford Style 3-bar MAP sensor (4-wire) for Boost and IAT - Gen2+ 5.0 L

PN: VMP-INM001
$59.99

Details

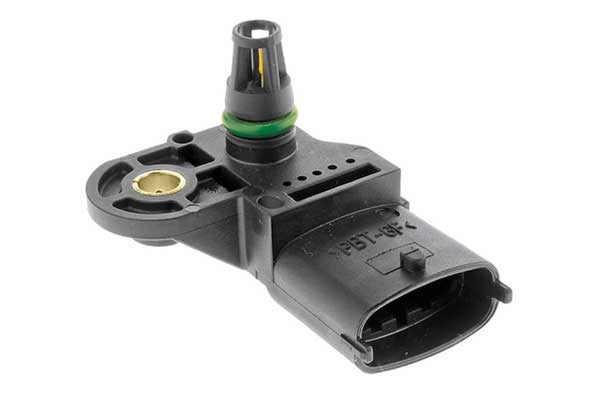

Ford Style 3-bar MAP sensor (4-wire) for Boost and IAT

Used in the following applications:

  • Roush supercharger kits for 15+ F-150
    • Mounts in back of lower intake
  • VMP supercharger kits for 15+ F-150
    • Gen3R style - use MAP block VMP-ACP014
    • Odin/Loki style - mounts on the passenger side rear of supercharger
  • Predator supercharger swaps on Gen2/Gen3 Coyote
    • Mounts in the passenger side rear of the lid
    • Allows for no-drill installation of an IAT2 sensors (post blower and intercooler)
    • Use VMP-INM023 plug and play harness to bring IAT2 into ECU for proper tuning

Recommended for applications up to ~30 PSI at sea level

Y= MAP(PSI)Slope (PSI)Sensor output(V)Offset(PSI)Y= MAP(In HG)Slope (inHG)Offset (InHG)
37.3069.5574.000-0.92275.95619.458-1.877
