VMP Odin Supercharger Tuner Kit Stage 3 - Gen2/Gen3 Coyote 5.0 L

VMP Odin Supercharger Tuner Kit Stage 3 - Gen2/Gen3 Coyote 5.0 L

SKU: VMP-ST1523ODINSS
$6,999.99

California Residents:Proposition 65 Warning
FOR CLOSED COURSE COMPETITION USE ONLY. NOT INTENDED FOR STREET USE. THE SALE, USE, OR INSTALLATION OF THIS PRODUCT MAY ALSO BE ILLEGAL NATIONWIDE UNDER THE FEDERAL CLEAN AIR ACT (42 U.S.C. § 7522(A)(3)).

VMP Odin Supercharger Tuner Kit Stage 3 - Gen2/Gen3 Coyote 5.0 L

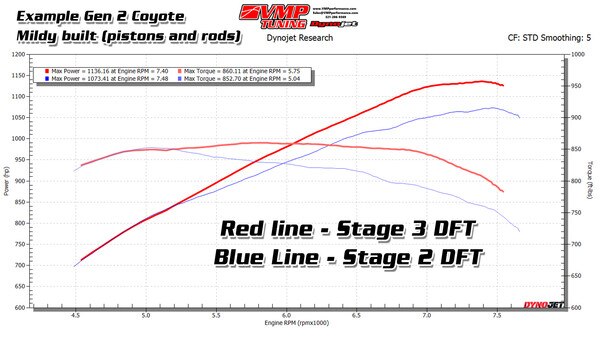

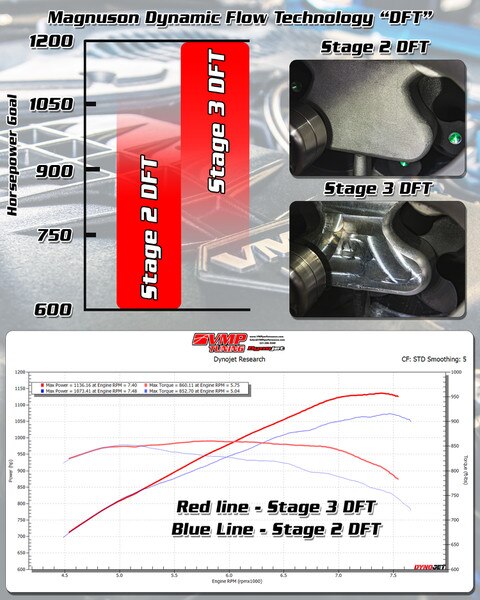

Stage 3 designates our factory “race port” utilizing Magnuson DFT technology. Stage 3 is only recommended when pulleying for 16 psi or more.

VMP Performance Supercharger Tuner Kits are built around our most popular head-units and allow the customer to select the accessory items they want for their particular chassis and build. Odin Tuner Kits are designed for engine swaps in pre-emissions 1964 and earlier vehicles. Kits should be selected based on the engine & ECU used and the desired power output. The Odin supercharger system is capable of 600 rwhp to 1200+ rwhp. Standard Stage 2 head-units and Stage 3 factory ported head-units are available.

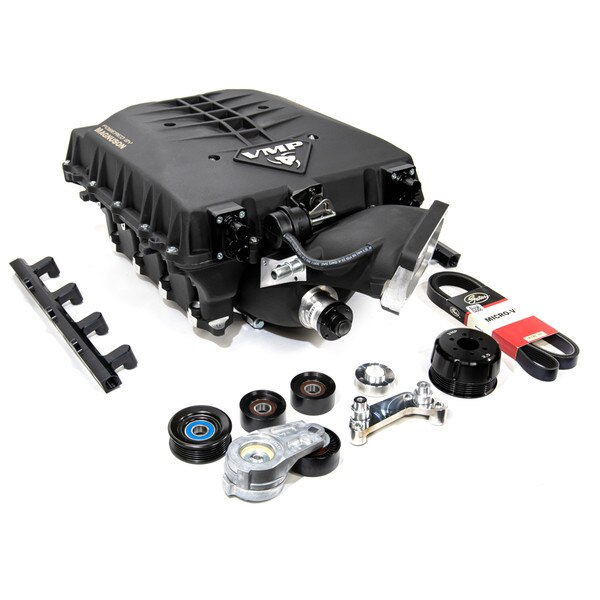

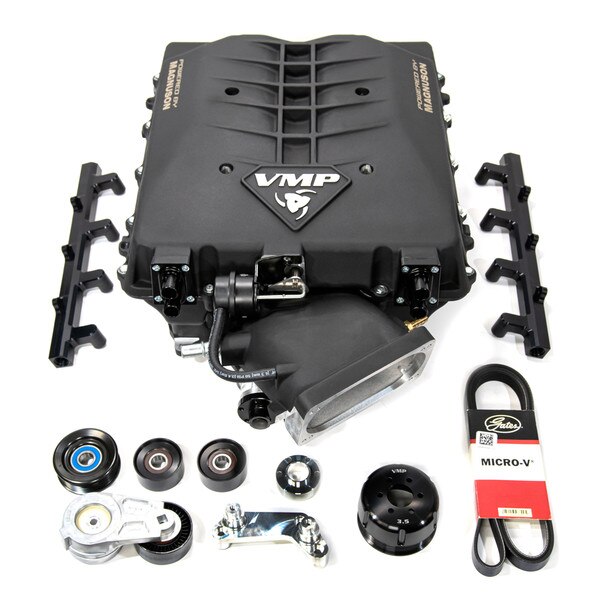

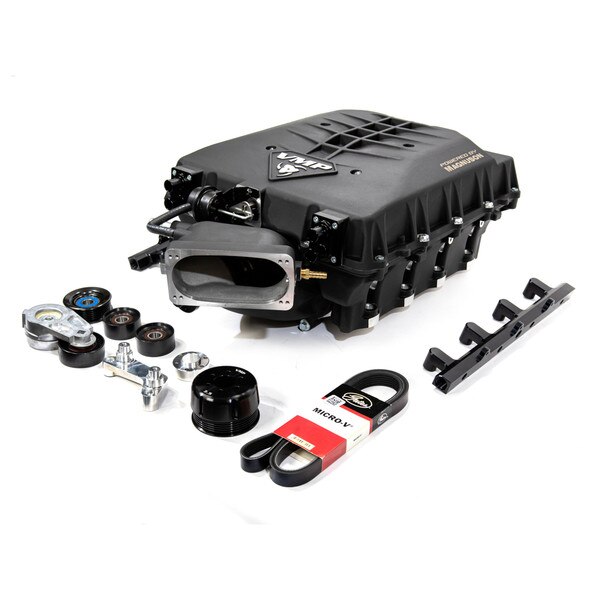

Tuner kits include:

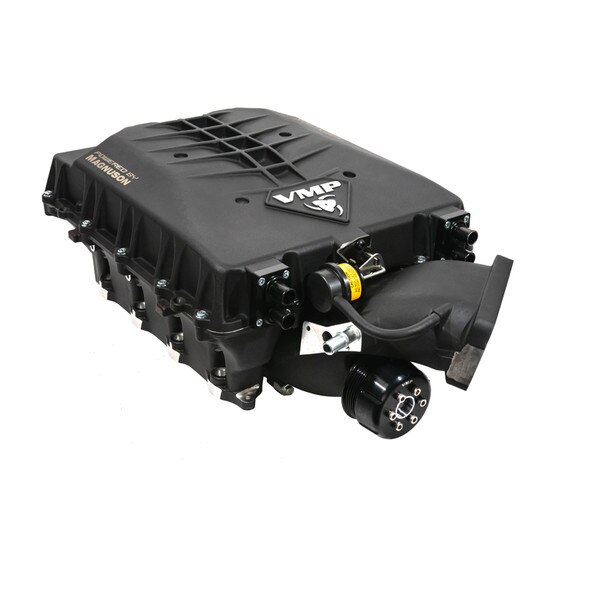

  • VMP/Magnuson Odin Supercharger Head Unit
  • VMP Billet Fuel rails with #8 ports, stock feed line adapters included

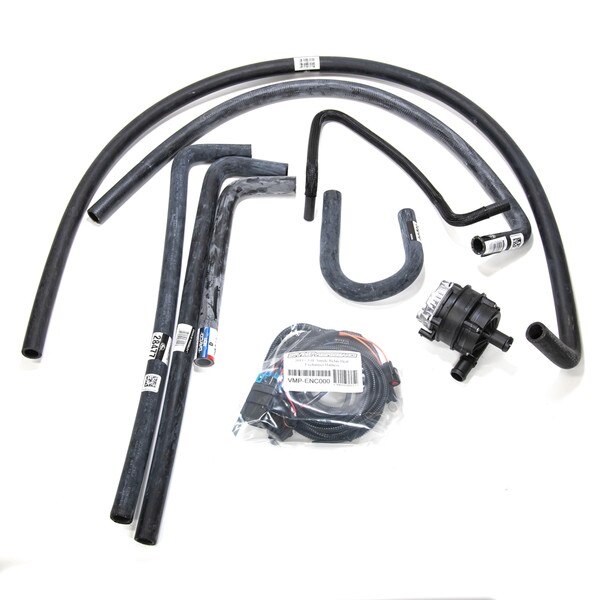

  • Intercooler hoses
  • Odin Degas Bottle*
  • Supercharger pulley of your choice (must add to cart for it to be shipped with your tuner kit)
  • K060722 Belt
  • VMP Street No-Grind FEAD System*
  • Bosch brushless intercooler pump and relay harness

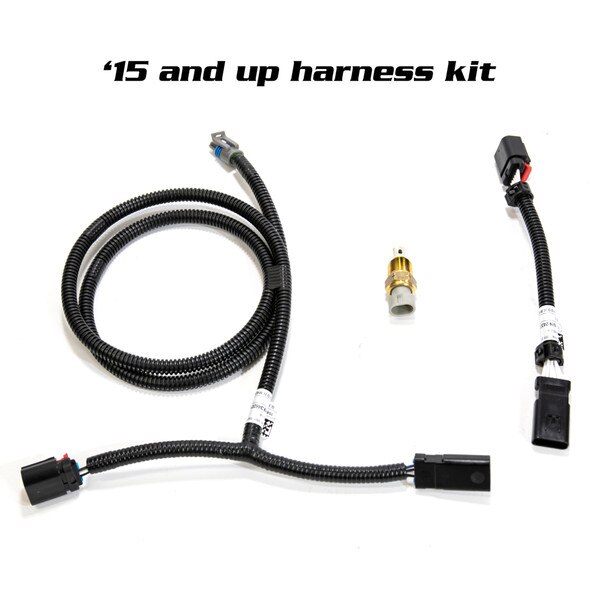

  • IAT sensor and harness for the appropriate year Mustang or F-150
  • PnP adapter harnesses for throttle body
  • All mounting hardware and gaskets

The above list is everything you need to wire and plumb an Odin head unit on a Coyote engine. See below for the required air induction, cooling, fueling, and tuning.

Customer will need to purchase:

  • Throttle body
    • Customer has the option of VMP Twinjet or VMP Monoblade
    • Loki adapter plates for stock 80 mm throttle body available
    • Odin uses the factory GT500 bolt pattern
    • Mechanical-linkage throttle bodies available
  • Cold air intake
    • VMP Odin CAIs are available at a discounted price when purchased with a tuner kit
    • Use Loki airbox coupler kits with stock TB and stock airbox
    • Our GT500-style throttle bodies use a 5-inch coupler
  • Heat exchanger
    • Customer has the option of VMP Single Pass or Triple Pass
    • We recommend VMP Multi-Pass when using an upgraded pump
    • Option to add fans as desired (VMP-11INCHFAN)
  • Injectors
    • VMP Odin uses short 48 mm style injectors, found stock in ‘07-12 and ‘13-14 GT500
    • Common aftermarket injectors from ID, DW, FIC may be used by removing the top hat
  • Tuning
    • VMP Level 3 tune must be purchased for Coyote cars and trucks
    • VMP Level X tune must be purchased for engine swaps with Ford Control Pack

Upgrades:

Customers have the option to add a variety of upgrades from the VMP catalog to push their Odin Supercharger Kit to its maximum horsepower potential.

Fuel system upgrades:

  • VMP Fuel Pump Booster (Mustang VMP-ENF000 or F150 VMP-ENF021)
  • VMP Plug and Play Return Style Fuel System
    • '11-'17 Mustang (VMP-ENF024)
    • '18+ Mustang (VMP-ENF043)

Common upgrades for the cooling system:

  • VMP Odin Ice Tank (VMP-SUC057)
  • Larger intercooler pumps (EMP or CJ/CMAX)
  • 1” lines
  • High-flow intercooler cores (coming soon!)

Common upgrades for the belt system:

  • VMP HD Tensioner for No-Grind FEAD (VMP-SUT009)
  • VMP Atlas Bracket for 6-/8-/10-Rib (VMP-ODT010)
  • VMP AC Bypass Tensioner Bracket for AC compressor removal or ground-on front covers
  • Pulleys in 6-, 8-, and 10-rib configurations
  • Smaller supercharger pulleys from stock 3.5” down to 2.4” in .100” increments
  • GripTec supercharger pulleys from 2.9” down to 2.4”
  • 10% and 20% overdrive balancers add 2 psi and 4 psi, respectively
  • 8-rib and 10-rib belt drive kits with and without AC
    • Upgrade kits used existing upper FEAD bracket
    • Full-FEAD kits include adjustable idler bracket

*Any parts purchased with a tuner kit that would result in duplicate or additional parts will result in the base components being removed from the kit leaving only the upgraded components. Example: by purchasing an upgraded tensioner, adjustable FEAD bracket, smaller pulley, or tank, the standard items will be omitted due to the purchase of upgraded components.

*Stage 3 factory ported only recommended when pulleying for 16 psi or more
