VMP Gen3R Head Unit Upgrade '11-17 Coyote 5.0 L - Stage 3
Financing available with Affirm.
- Minimum recommended blower rpm 20,000
- Minimum RPM on WOT shifts 16,250
- Recommended for 900rwhp and above or 2.6" pulley or smaller
- Below the recommended blower RPM the Stage 3 supercharger will make less boost and less torque. We only recommend this version if you are spinning it to the moon.
See related items below for recommended accessories.
Use VMP 6, 8, or 10 rib bolt-on pulleys with this supercharger, click here to view VMP's line of pulleys.

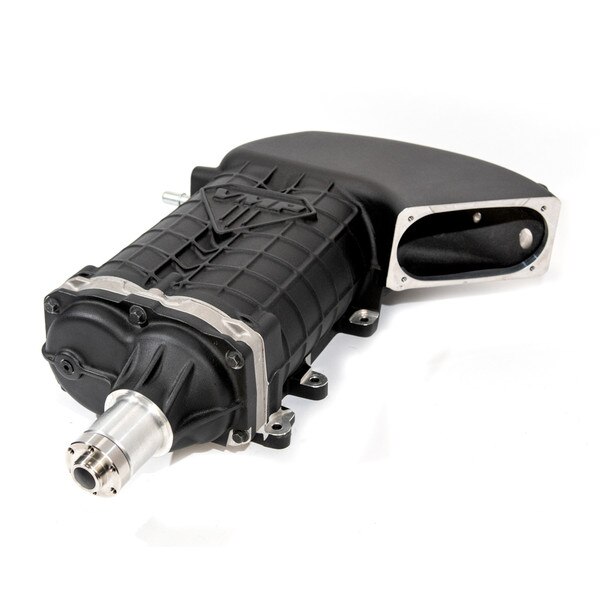

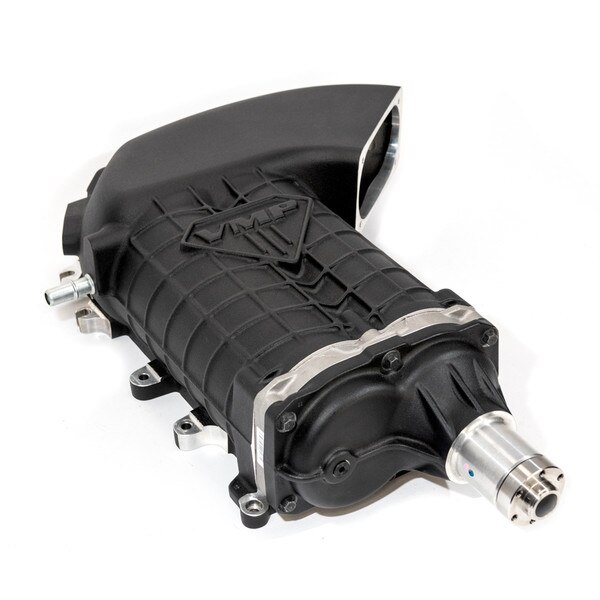

Based on VMP and Magnuson’s extensive experience with Eaton TVS superchargers we have significantly upped the ante with the new VMP Gen 3R.
Our latest blower is capable of meeting the needs of the weekend cruiser all the way up to your all-out drag strip bruiser.
Utilizing the latest patent Magnuson inlet port technology and Eaton 2.65 L TVS rotors the VMP Gen3R is able to produce amazing horsepower numbers. Available pulley sizes allow this supercharger to be run from 12 psi to 25+ psi. Capable of 700-1250+ rear-wheel horsepower.
What’s different compared to the original VMP Gen3 TVS supercharger?
All new casting

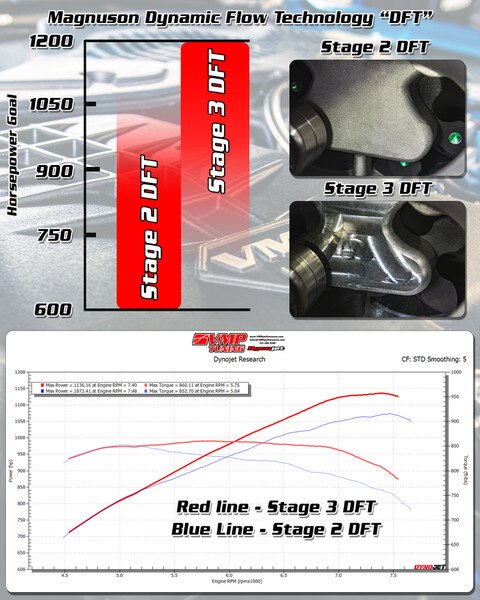

Patented Magnuson Stage 2 DFT port geometry Standard, Stage 3 available
Smoother airflow path into rotors
Uses stock GT500 throttle-body bolt pattern for an improved short turn radius
What kind of horsepower gain can you expect over the original Gen3?
The 3R starts showing a performance improvement with 82mm and smaller pulleys
With a 69mm upper only expect a 30-40rwhp gain
With a 69mm & 15% we saw a 75rwhp gain, click to see this video
Best gains are seen with a large enough throttle body
Throttle body recomendations:
VMP Twinjet 67mm or Twinjet 69mm up to 700-800rwhp
VMP 137 Monoblade for 800+rwhp (11-14 only)
VMP 163R Monoblade for 1000+rwhp (11-14 or 15 up)
VMP has designed a new line of monoblades around power, driveability, and tuneability. Click here to view VMP's line of throttle bodies.
Check out what makes the Gen 3R better in our video here:
Our kit includes all necessary parts and hardware to upgrade the head unit. If your upper pulley size is changing drastically you may need a new supercharger belt.
Pulley Size Inch | Pulley Size MM | Boost | Fuel Octane |
3.5 | 92 | 11psi | 91+ |
3.4 | 88 | 12-13psi | 91+ |
3.3 | 85 | 14psi | 93+ |
3.2 | 82 | 15psi | 93+boostane |
3 | 79 | 16psi | 93+boostane or E85 |
2.8 | 75 | 17psi | 93+boostane or E85 |
2.7 | 72 | 18psi | 93+boostane or E85 |
2.6 | 69 | 21psi | Race fuel or E85 |
2.5 | 22psi | Race fuel or E85 | |
2.4 | 63 | 24psi | Race fuel or E85 |
*Each .1” or 3mm on the upper pulley is approximately 1psi or 20-30rwhp
*Each 5% on the lower pulley is approximately 1psi or 20-30rwhp
On max-effort builds boost should be kept as low as possible by improving engine airflow with aftermarket camshafts and ported cylinder heads. Expect a 3-5psi drop with Comp Stage 3 or larger camshafts. We do not recommend running over 27psi, excessive boost or RPM will void the warranty on your VMP supercharger
