The VMP Apex Predator supercharger was designed to be a direct upgrade from the factory supercharger in the 2020+ GT500 and the 2023+ Raptor R. This head unit has the ability to retain the factory fuel rails, injectors, intercooler, lid, water manifold, PCV system, and sensors. All Apex upgrades are also compatible with this supercharger.

The Apex Predator head unit features a superior inlet and discharge design compared to the factory Predator supercharger. This enhanced design unlocks the full potential of our Apex intercooler series and is specifically designed for our 112mm throttle body.

We also offer a line of adapters to utilize other throttle bodies on this larger inlet in the case of Predator blower swaps or other unique situations. The links to those various adapters are below.

• VMP-INA054 VMP Apex Inlet to 80 mm GT and '21 F-150 TB Adapter
• VMP-INA055 VMP Apex Inlet to 80 mm GT and GT350 TB Adapter
• VMP-INA056 VMP Apex Inlet to OEM Predator TB Adapter

This head unit utilizes our F line of bolt-on pulleys, available in sizes ranging from 3.6” to 2.4”, with Griptec options for the smaller sizes.

Link to pulleys:

https://www.vmpperformance.com/VMP-Parts/VMP-pulleys-belt-drive/VMP-Supercharger-Pulleys/VMP-coyote-8rib

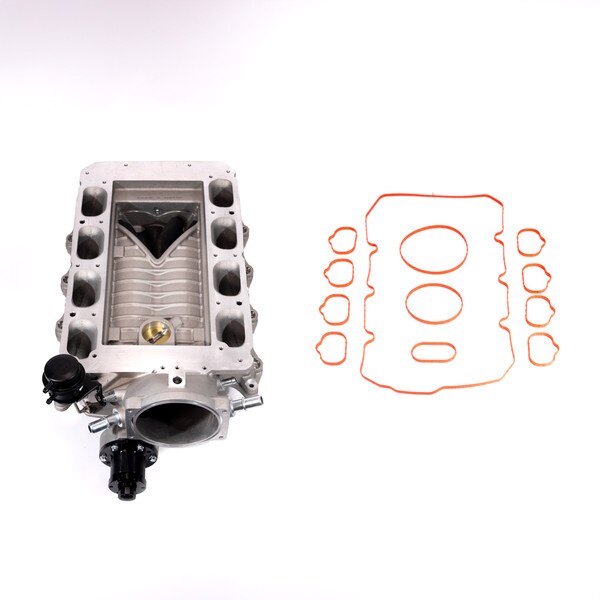

This kit includes:

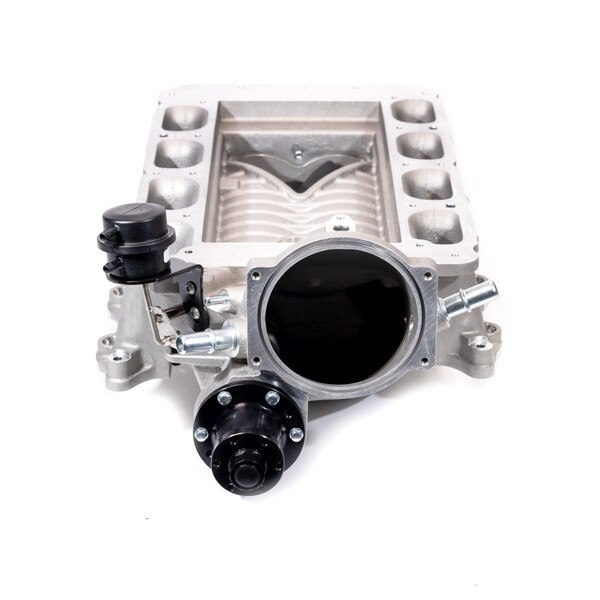

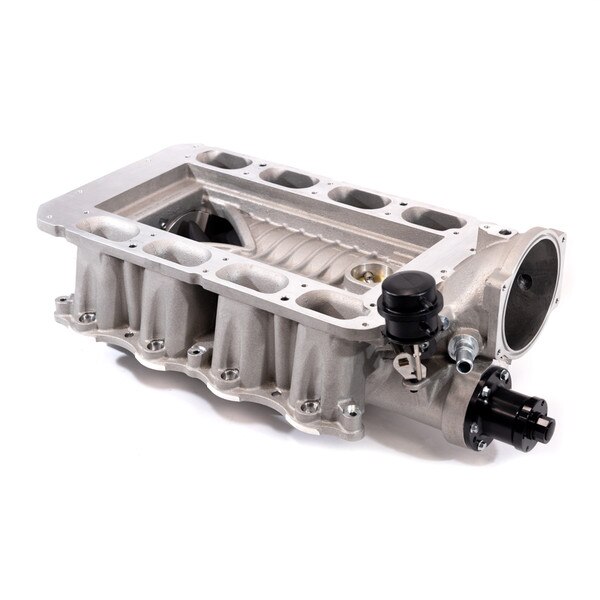

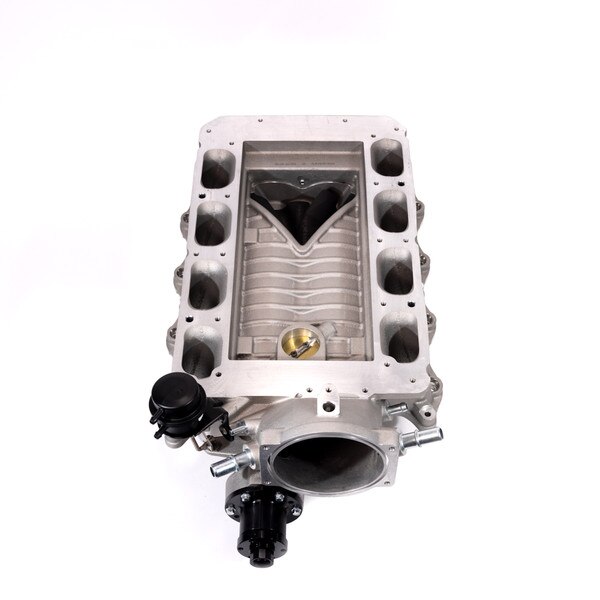

• VMP Apex Predator Stage 2 TVS 2650 head unit

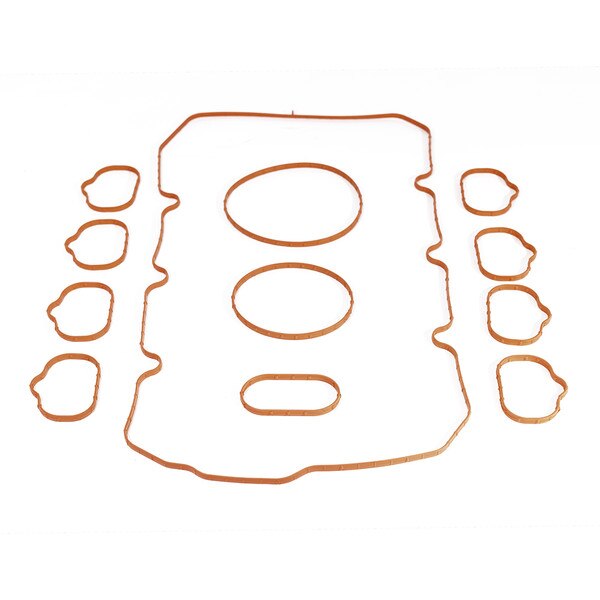

• VMP Supercharger gasket seal kit for Predator and Apex Predator
